The Simon Snorkel Hoist

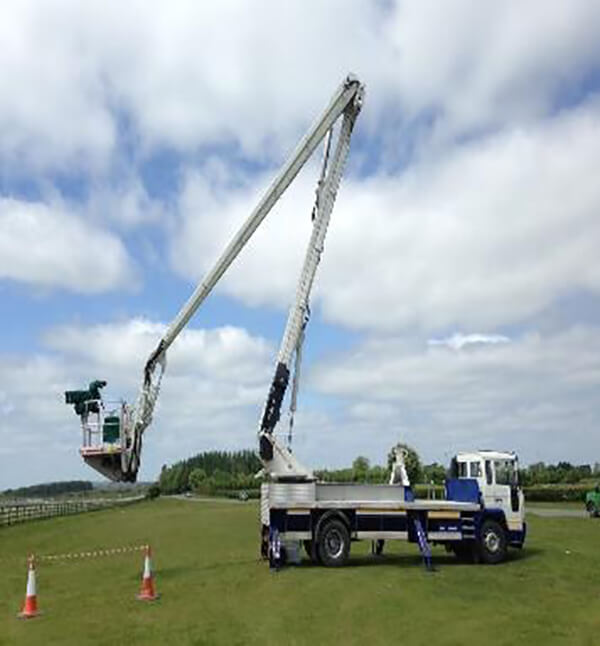

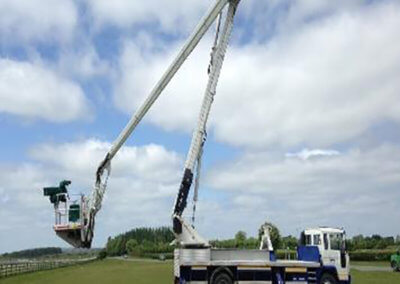

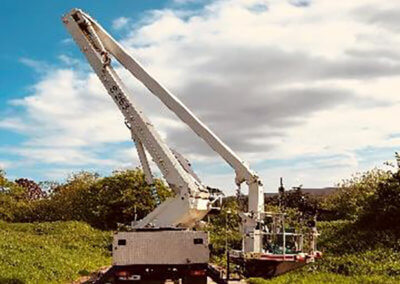

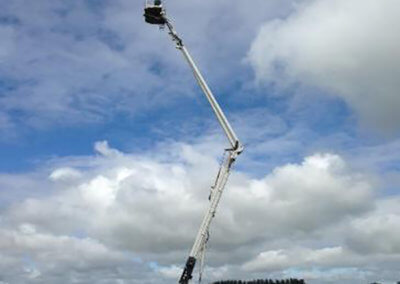

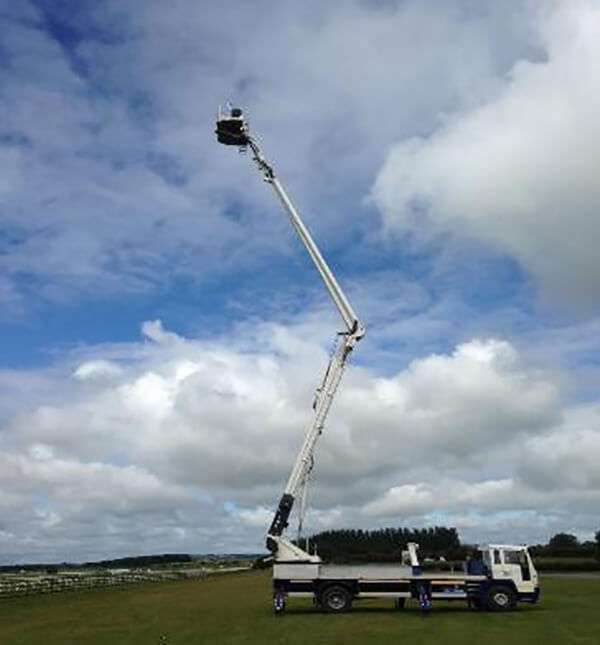

The Simon Snorkel Hoist – 26m

Elevated work platforms for film production and general use.

The Simon Snorkel is our 26M hoist. This hoist’s working envelope has a reach height of 26m and an outreach of 14m with an A-Framed Jacking system, allowing access to narrower locations. Supplied with a fully certified MEWP driver operator. We can also supply an MEWP certified professional camera operator and photographer on request.

The Simon Snorkel 26m hoist is an ideal work platform for TV and Film Camera Productions as the attached scaff bars are suitable for camera and lighting mounts. The Simon Snorkel is also ideal for cable installation, window cleaning, poster and banner erection, building wrapping, as well as general maintenance at height.

SIMON SNORKEL 26M SPECIFICATIONS

• Mounted on a Volvo PL220 truck
• Max Working Height: 26m
• Max Working Outreach: 14m
• Boom Configuration: Articulated boom with Fly Boom
• Cable: 2 x Triax Cables plus 2 x BnC Video Cables through boom
• Air/Water Supply: High-pressure hose running up through boom
• Power Supply: 110V Power to Basket
• Platform Capacity (SWL) 360Kg. 3 persons.
• Detachable Camera Scaff Mount Bars
• Cage Rotation: Fixed
• Jacking System: A-Framed
• Vehicle Weight: 18,000 Kg
• Max Wind Speed: 12.5m/s
• Controls: Proportional Joystick in cage and base controls
• Safety Equipment: Can be supplied.

Please contact us for hourly and daily rates.
